UDP Emitter Signal Characterization Results

Description:

  • These are the results of UDP Emitter Signal Characterization using CBR traffic with a patched version of thrulay by Huadong Liu. I disable any coalescing on the Intel NICs (basically I manually load the latest Intel driver for Linux using the following parameters: "TxAbsIntDelay=0 TxIntDelay=0 RxAbsIntDelay=0 RxIntDelay=0 InterruptThrottleRate=0".

  • Offered load from 100Mbps to 1000Mbps (in order)

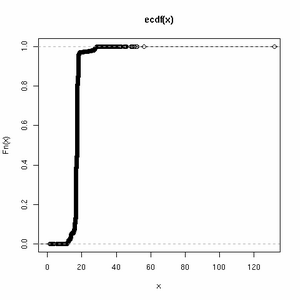

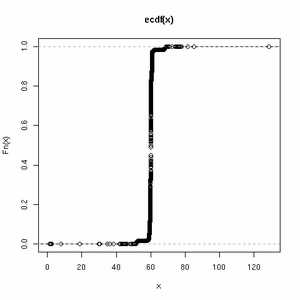

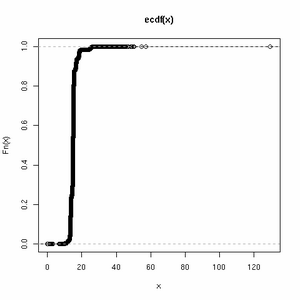

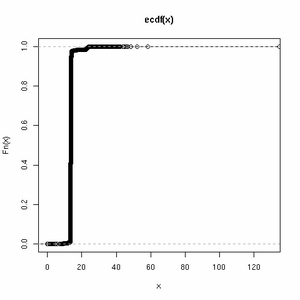

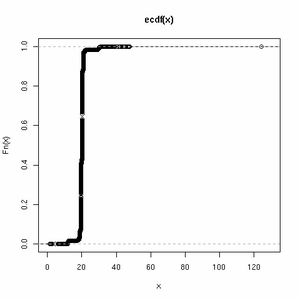

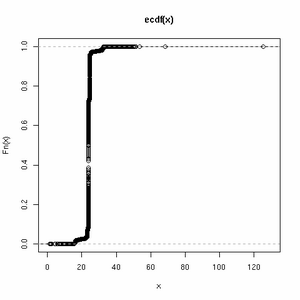

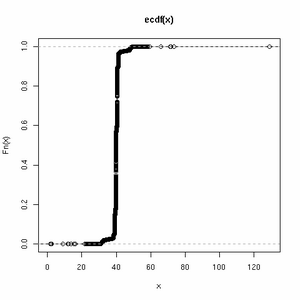

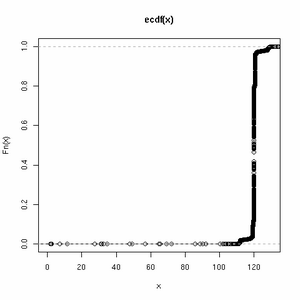

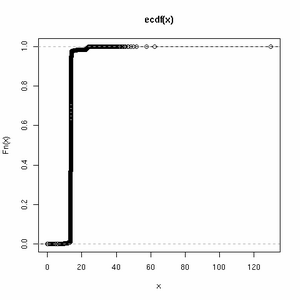

    Empirical CDF only (130 usec granularity fixed)
